ADK roller shutter

Description

Description

By dividing them into individual elements, they can be individually adapted to your needs, whether in terms of air permeability, light penetration, or color. From floor-to-ceiling daylight to intensive light insulation, our ADK doors offer a wide range of custom design options thanks to their variable tarpaulin sections.

Our roller shutter doors are made of durable material that can withstand any weather conditions. Whether rain, snow, or wind, these doors provide reliable protection for warehouses, barns, and other buildings.

How it works

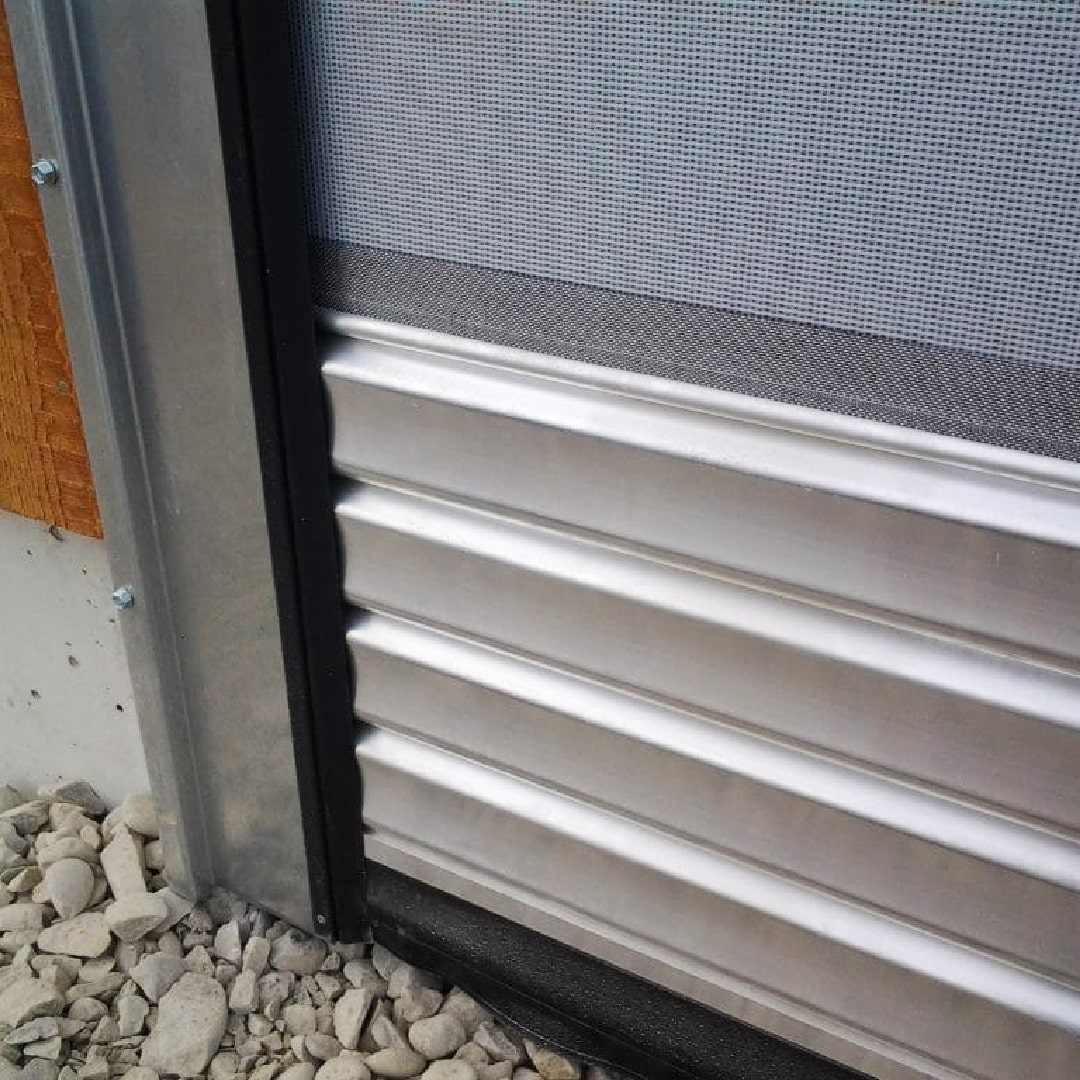

The 3 mm thick guide channels ensure high wind stability. The guide channels are two-part and removable from the front. A movable wind bracing system is included for door widths of 4.50 m and over.

Roller shutters require minimal space when open and can be installed both inside and outside. This is particularly advantageous in confined spaces.

Custom-made products

The ADK roller shutter can be installed outside or inside and requires little installation space.

In addition to the standard gate (max. 7 m wide and 6 m high), the double roller shutter can close a total passage width of up to 14.36 m, with the central guide channel being movable.

From size to color to features – roller shutter doors can be customized to your company’s specific needs. You can choose from a variety of materials and features.

Advantages

• Weather resistance through the use of durable material.
• Easy to repair and maintain thanks to the segmented design of the gates
• Individual adaptation: Equipment variable depending on the intended use.
• Space-saving suspension without swivel space.

Technical data

• Maximum clear length: Up to 7 m
• Maximum clear height: Up to 6 m

Our radio-controlled gates are secured with a light barrier in addition to the closing edge safety device.

Areas of application

• Stables
• Multi-purpose building
• Machine halls
• Commercial halls
