Airkoe Safe System Barn Curtains
The Airkoe Safe System is a made-to-measure folding barn curtain that provides controlled ventilation and dependable weather protection for livestock and agricultural buildings.
Opening from the top down, the system allows fresh air to enter the building while helping to protect livestock from wind, rain and changing weather conditions. It can be operated manually or connected to an automatic climate-control system.
Request a quote
Description
Barn Mesh Curtains for Livestock Ventilation
Airkoe barn mesh curtains regulate the amount of fresh air entering cattle sheds, dairy barns and other livestock buildings. Because the curtain opens from the top down, you can introduce ventilation at a higher level while the lower part of the opening remains covered.
This helps reduce direct draughts at animal level while supporting consistent airflow throughout the building. You can also adjust the curtain as weather conditions change, helping to balance ventilation with protection from wind and rain.

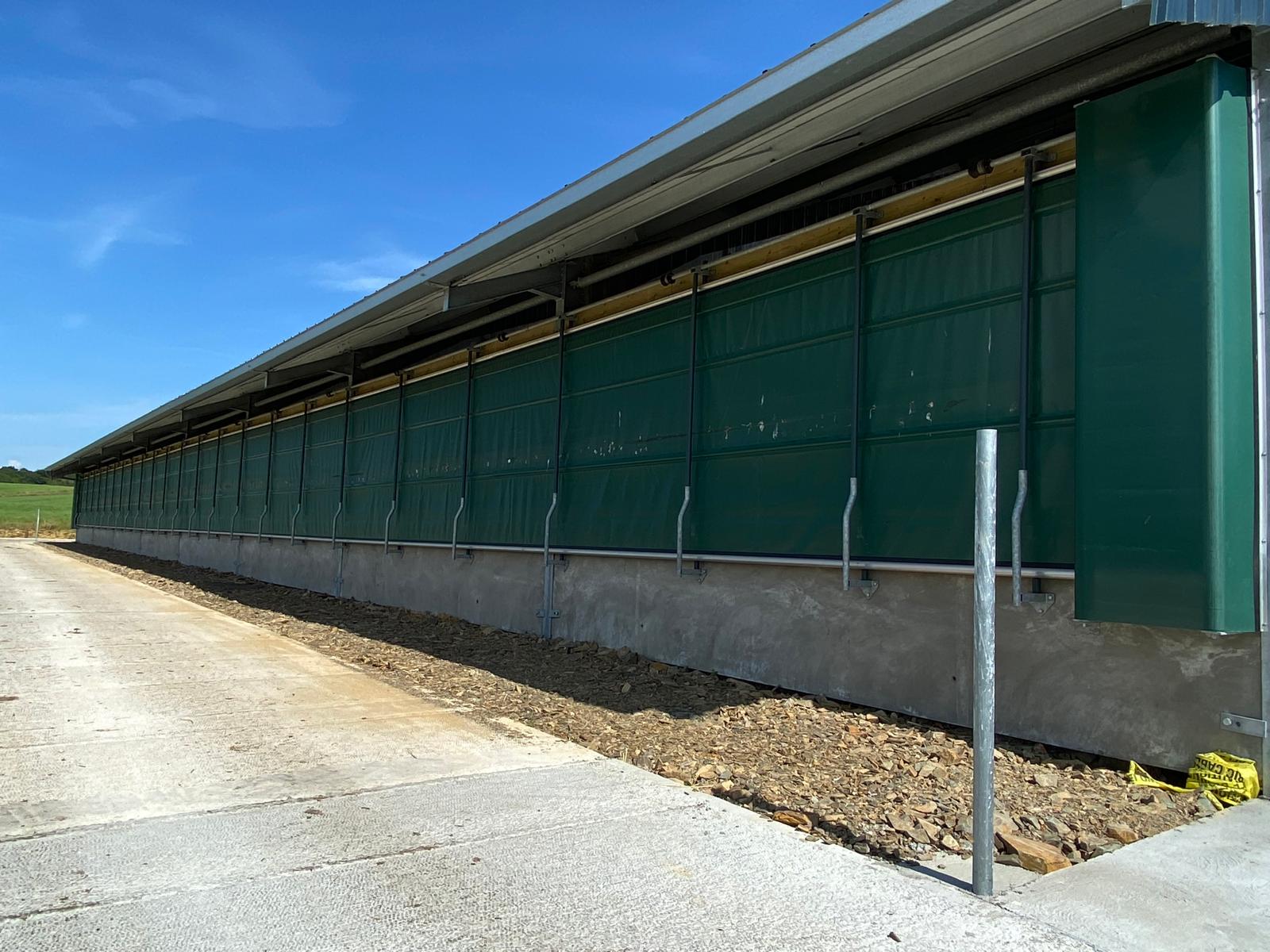

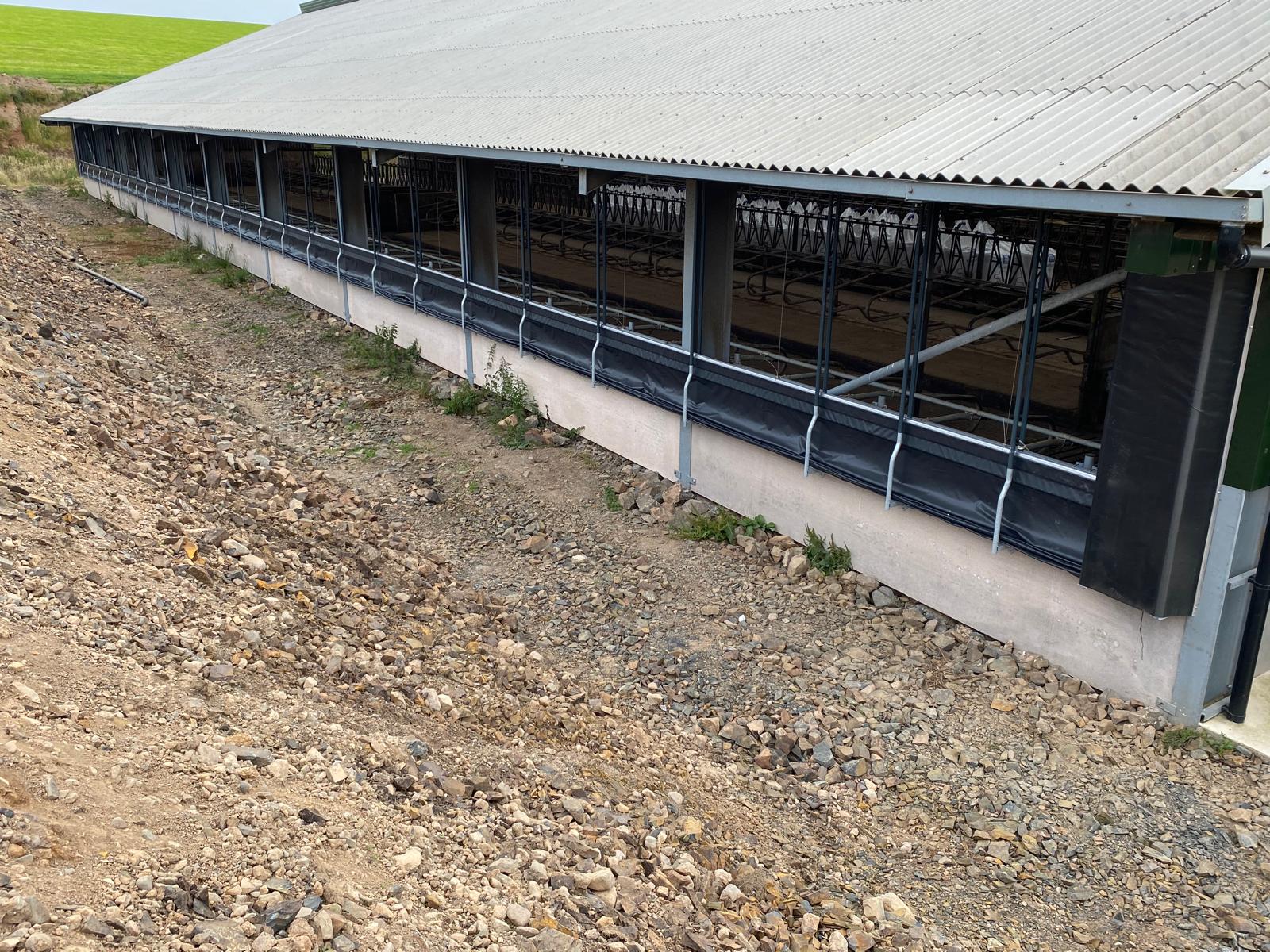

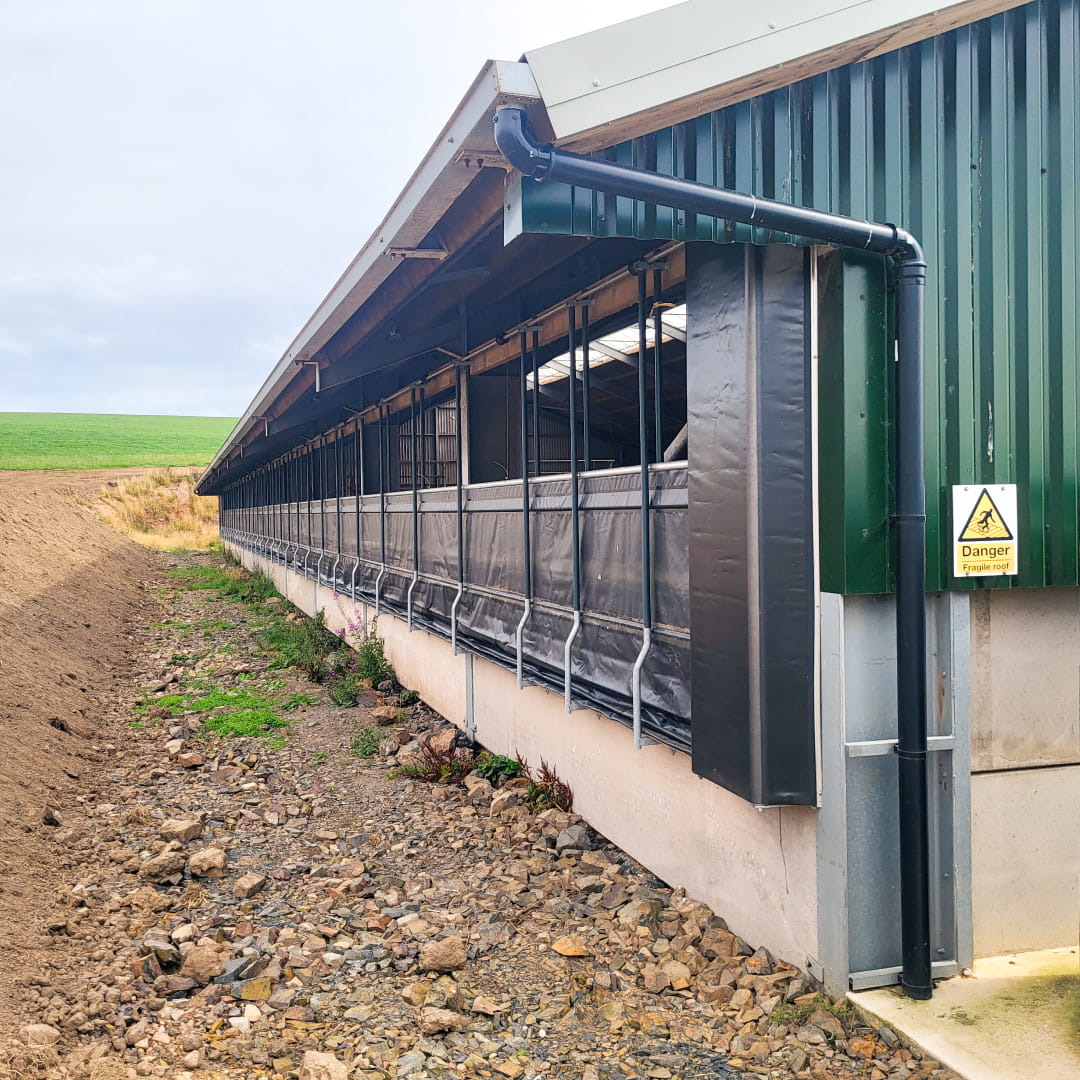

The system suits large sidewall openings, exposed bays and other open sections of livestock and agricultural buildings that require adjustable weather protection. Bird netting can also be fitted without restricting the operation of the curtain.
Key Features:
Airkoe Safe System provides a flexible way to manage airflow and weather protection across large openings in livestock buildings.
Key features include:
- A single drive links to the top bar that controls up to 100 metres of curtain.
- A choice of curtain material and colour.
- Material that looks opaque from the outside while allowing natural light into the building.
- A five-year full warranty, low maintenance requirements and a long service life.
- Manual or automatic climate control to optimise ventilation in changing weather conditions.
- CE certification for safe operation.
Construction and Operation

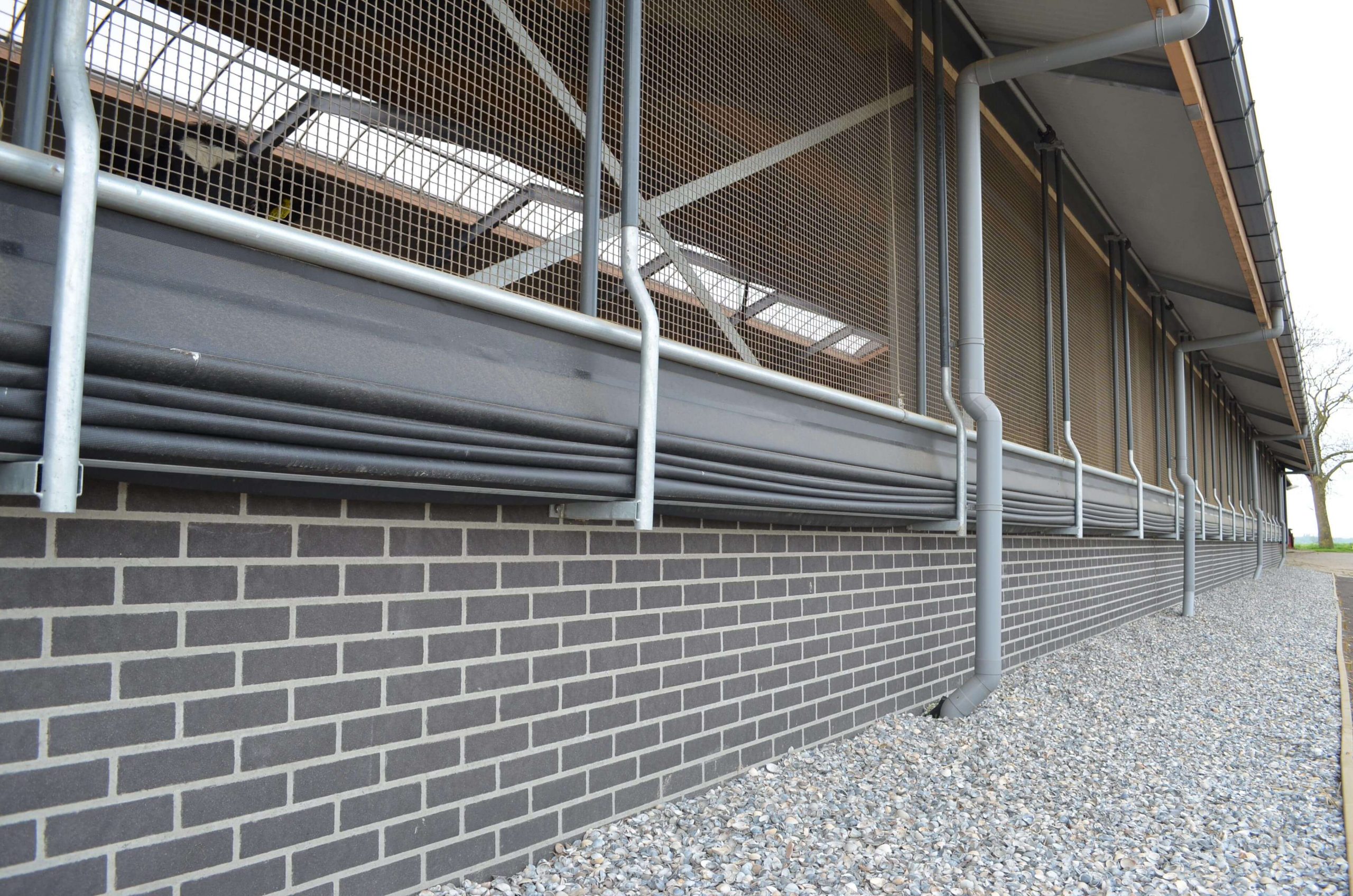

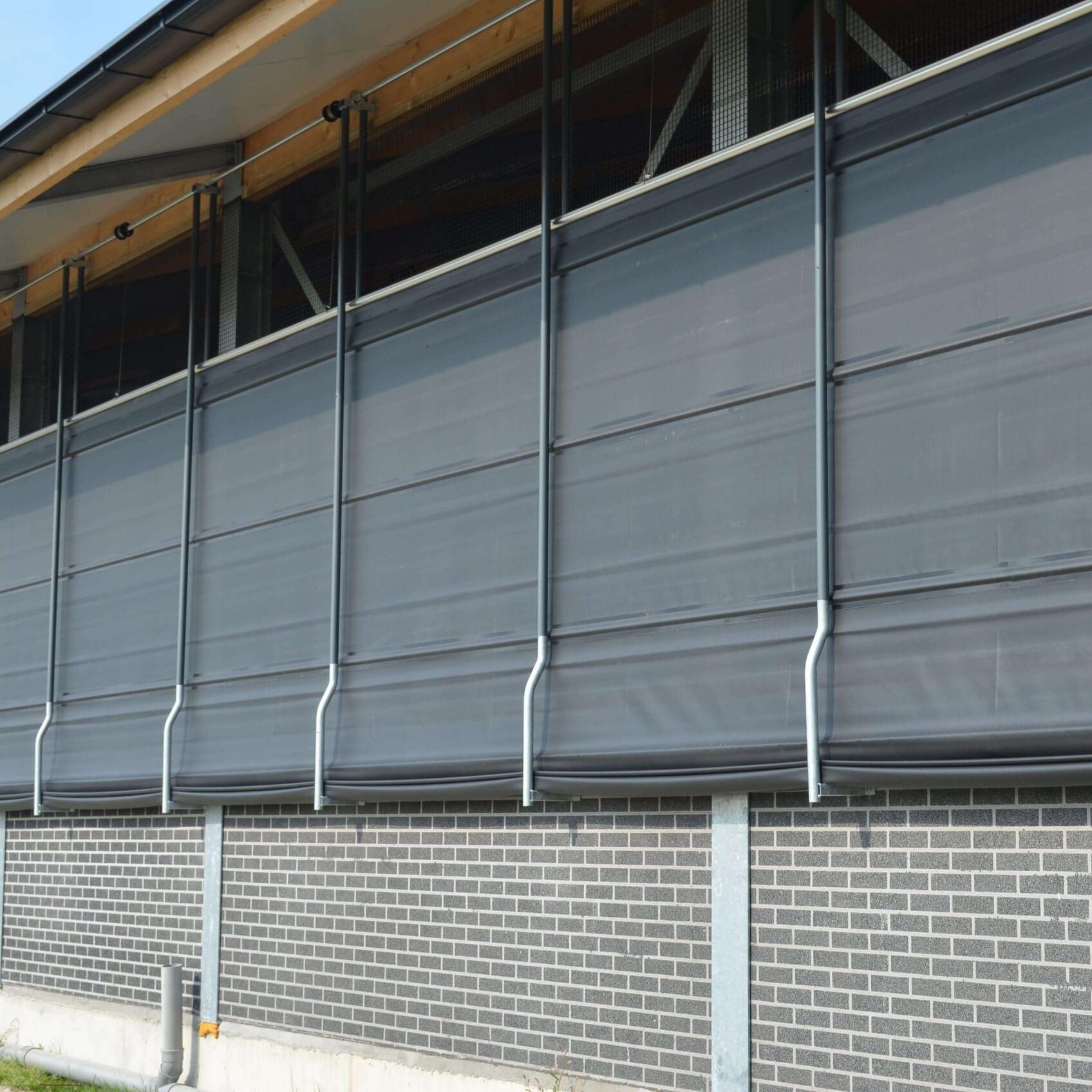

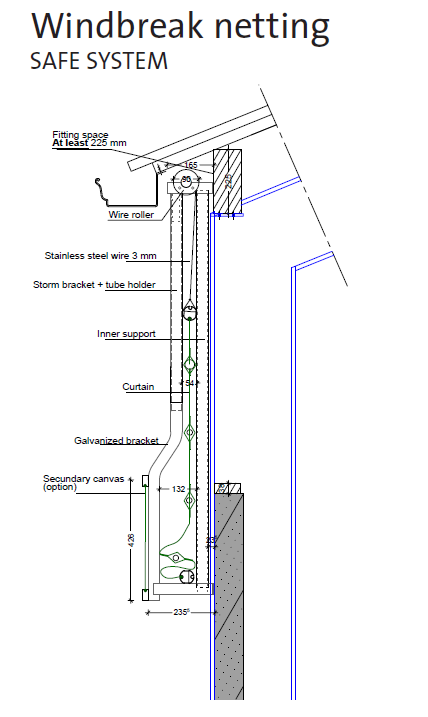

Powered by a 380-volt electric drive, the top bar turns to raise or lower a tube attached to the top of the curtain. When the tube is lowered, the curtain folds, allowing for the system to opened from the top down.
Half-inch steel rods are incorporated every 60cm. These rods provide strength and stability when the curtain is closed while helping the material form neat, controlled folds when opened.
Manual and Automatic Climate Control
The Airkoe Safe System can be operated manually or connected to a climate-control computer. When automated, the curtains can open and close in response to changing temperature, wind and rain conditions.
This allows the system to adjust the building’s ventilation throughout the day, helping to maintain a more comfortable environment for livestock without requiring continual manual operation.
Materials and Optional Features
Various aspects of the system can be tailored to suit the appearance and requirements of any building. Available options include:
- Curtain material in a choice of colour, including green, grey and black.
- White translucent option that allows additional natural light.
- Automatic operation via a compatible climate-control computer.
- Compatible with bird screens.
- Airkoe Safe Plus System: incorperates a secondary curtain covering the full length of the folded material when the system is open, creating a neater finish.
Installation and Fitting
Every Airkoe Safe System barn curtain is made to order according to the dimensions and requirements of the individual building. Our professional fitting teams install each system to ensure it operates safely, reliably and to a high standard.
