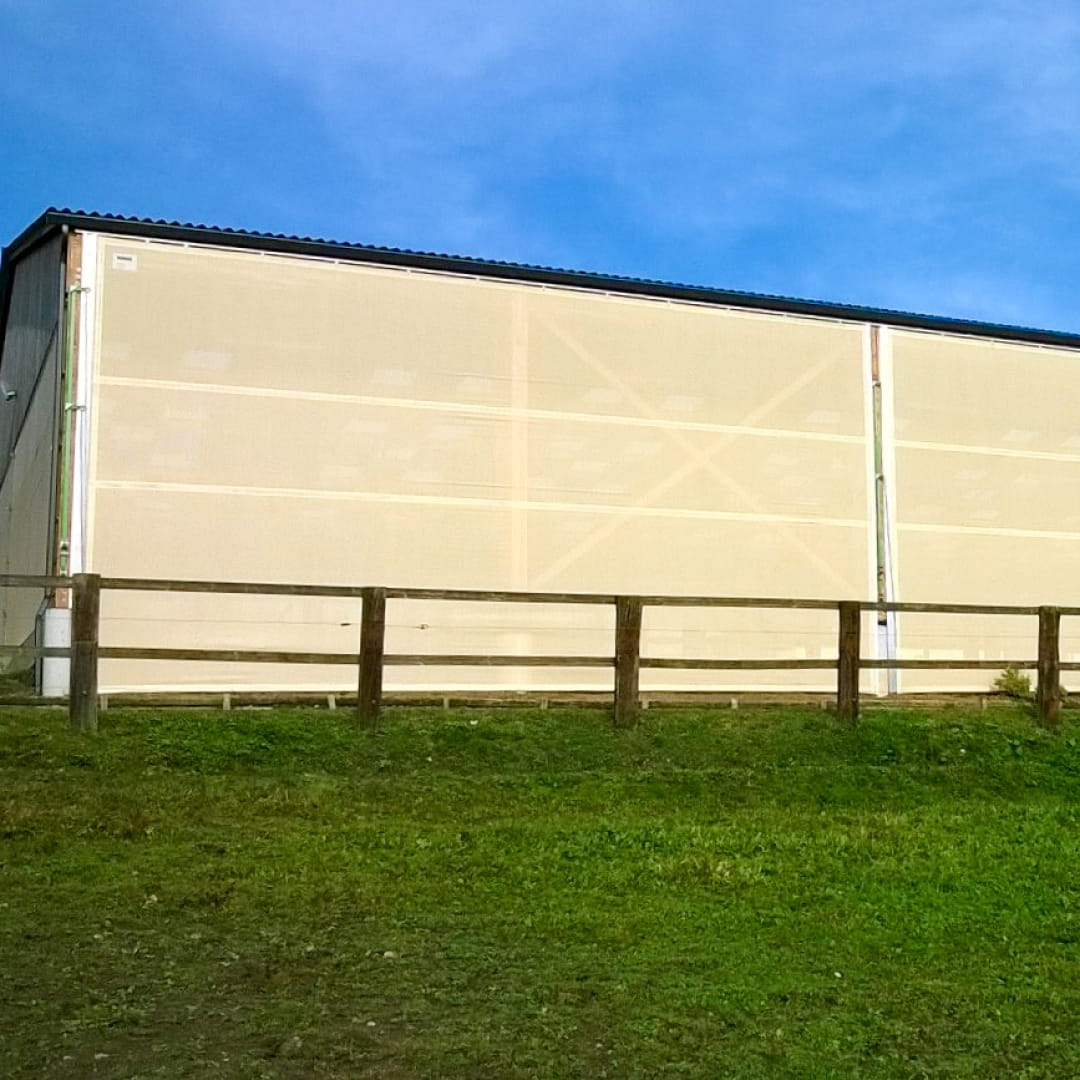

Vervaeke Sliding Curtain
Custom Agricultural Sliding Curtain System
Combine flexible barn access with heavy-duty weather protection. Our Custom Sliding Curtain System is engineered for open-fronted livestock sheds, feeding passages, and machinery bays that require frequent access without sacrificing climate control. Designed to cover span openings up to 18 metres wide and 5 metres high, this system slides smoothly to the side—giving you instant, full-height access for tractors, diet feeders, and livestock handling equipment.
Request a quote
Description
Built to Withstand Tough Farm Environments
Farm buildings present demanding conditions—from high moisture and ammonia to harsh outdoor exposure. To guarantee long-term performance without sticking or rusting, all primary structural rails, tracks, and hanging components are extruded from high-grade aluminum, paired exclusively with stainless steel fasteners.
The curtain slides effortlessly along a heavy-duty top track. To open, simply release the manual side tensioners and slide the fabric neatly to one side.
Key Technical Benefits & Features
-
Flexible Access Geometry: Opens smoothly horizontally to the side, providing complete ground-to-header clearance for high-clearance farm machinery.
-
Dual Opening Options: Can be configured to open from the left, from the right, or split down the middle to open from both sides.
-
Aluminum & Stainless Steel Construction: Aluminum top curtain tracking and side rails paired with stainless steel fittings ensure zero rust or binding in humid barn environments.
-
Manual Precision Operation: Simple, ultra-reliable manual operation with high-torque tensioners—eliminating electrical failure risks or motor maintenance.
-
CE-Certified Quality: Fully compliant with European structural and agricultural safety standards.
-
Fire-Retardant M2 Fabrics (in option): All fabric choices meet official flammability class M2 fire safety standards.
Custom Fabric Blends & Windbreak Ratios
Every sliding curtain is custom-welded to order in our factory, allowing you to combine different technical materials into a single sheet:
-
100% Waterproof Heavy-Duty Tarpaulin: Totally blocks driving rain, snow, and wind to protect machinery, dry bedding, or feed stores.
-
High-Breathability Windbreak Mesh: Diffuses strong winds while maintaining vital air exchange to remove stale moisture and ammonia from stock pens.
-
Combination Hybrid Panels: Combine a solid, scuff-resistant tarpaulin lower section with a breathable upper mesh window for ideal balance.
-
Agricultural Color Options: Available in a range of colors per windbreak factor to seamlessly integrate with your existing farm cladding.
System Specifications
| Feature / Metric | System Specification Details |
| Maximum Span Dimensions | Up to 18m Wide x 5m High |
| Opening Mechanism | Manual horizontal slide (Left, Right, or Bi-parting options) |
| Structural Tracking | Extruded aluminum overhead rail & vertical locking side channels |
| Hardware Grade | 100% Stainless steel fasteners & tensioners |
| Fire Safety Rating (in option) | Flammability Class M2 (Fire Retardant) |
| Certification | CE Label Certified |
Upgrade Your Barn Access & Weather Protection
Get the perfect balance of easy shed entry and storm-proof shelter. Contact the Intershape technical sales team today for a custom quote, fabric samples, and site measurements.
